产品参数

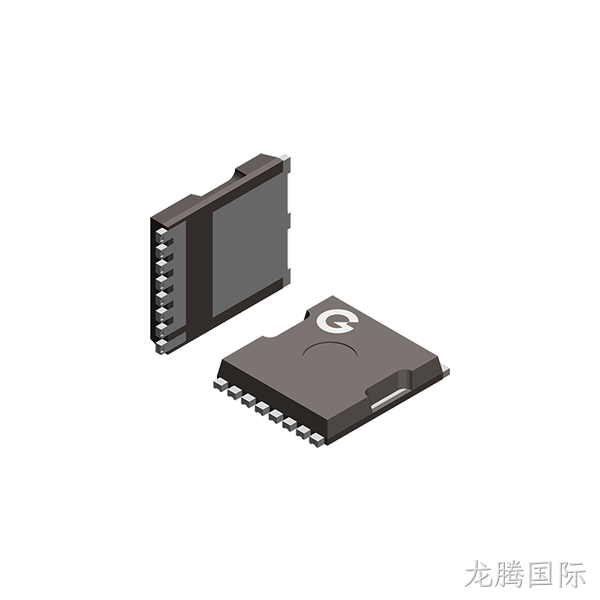

- Package: TOLL
- AEC Qualified: NO
- Pb Free: YES
- Halide Free: YES
- REACH: YES
- RoHS: YES
- Marketing Status: Active
- Configuration: Single
- Channel Polarity: N
- PD(W) Max.: 250
- V(BR)DSS(V) Min.: 150
- VGS(V) Max.: ±20
- ID(A) Max.: 140
- IGSS(uA) Max.: ±0.1
- VGS(th)(V) Max.: 4
- RDS(on)(mΩ)@ 10V Typ.: 4.2
- RDS(on)(mΩ)@ 10V Max.: 5.5
- ESD: /
- TJ(°C) max.: 150
- TJ(°C) min.: -55
- ECCN(US): EAR99
包装 (编带盘装)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| TOLL | 24 | 330 | 2 | 1.906 | 335x335x42 | 2 | 2.11 | 480x350x365 | 20 | 6.87 |
