产品
产品参数

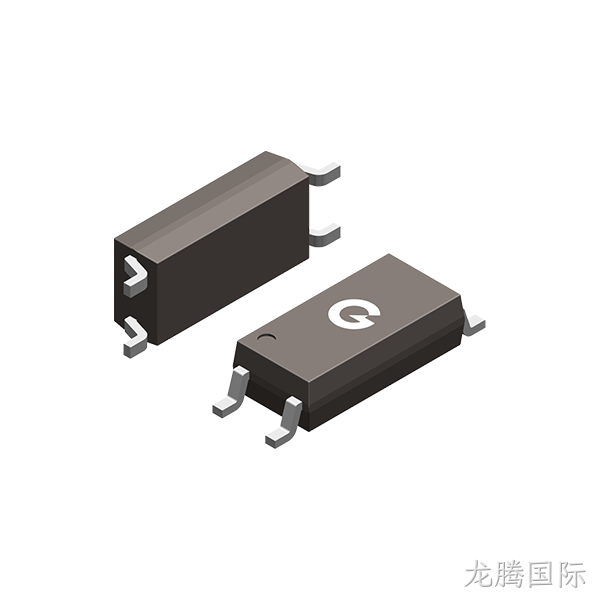

- Package: LSOP-4L
- AEC Qualified: NO
- Pb Free: YES
- Halide Free: YES
- REACH: YES
- RoHS: YES
- Marketing Status: Active
- VCEO (V): 80
- TJ(°C) max.: 125
- TJ(°C) min.: -55
- IC(mA): 50
- Turn On (us) typ.: 3
- Turn Off (us) typ.: 2
- CTR(%) min.: 130
- CTR(%) max.: 260
- VF (V): 1.7
- IF (mA): 60
- VISO(V) min.: 5000
- ECCN(US): EAR99
- Safety Standard: UL, VDE
包装 (编带盘装)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| LSOP-4L | 16 | 330 | 3 | 0.777 | 350x340x60 | 6 | 1.71 | 365x330x370 | 30 | 18.14 |
