产品
产品参数

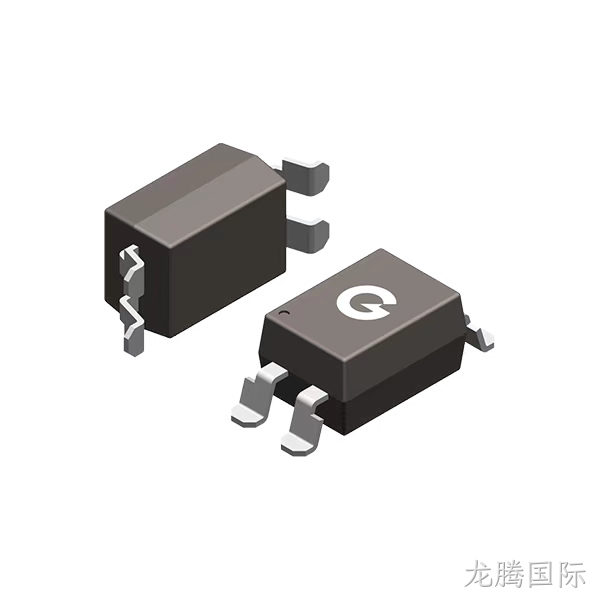

- Package: SMD-4L
- AEC Qualified: No
- Pb Free: Yes
- Halide Free: Yes
- REACH: Yes
- RoHS: Yes
- Marketing Status: Active
- VCEO (V): 80
- TJ(°C) max.: 110
- TJ(°C) min.: -55
- IC(mA): 50
- Turn On (us) typ.: 4
- Turn Off (us) typ.: 3
- CTR(%) min.: 200
- CTR(%) max.: 400
- VF (V): 1.4
- IF (mA): 50
- VISO(V) min.: 5000
- ECCN(US): EAR99
- Safety Standard: UL, VDE,CQC
包装 (编带盘装)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| SMD-4L | 8 | 330 | 2 | 0.8 | 350x340x60 | 4 | 1.76 | 365x330x370 | 20 | 18.64 |
