产品参数

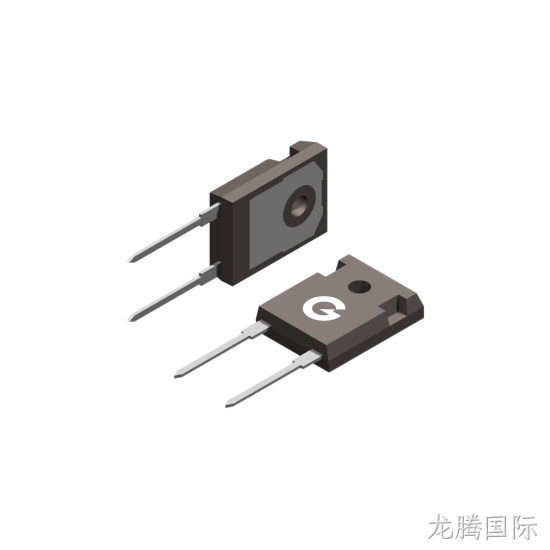

- Package: TO-247-2L
- products_sort: 64
- AEC Qualified: NO
- Pb Free: YES
- Halide Free: YES
- REACH: YES
- RoHS: YES
- Marketing Status: Active
- Configuration: Single,Common Cathode
- VRRM(V) max.: 1200
- IF(A) max.: 10
- VF (V) max: 1.7
- IFSM(A) max.: 90
- IR(uA) max.: 100
- TJ(°C) max.: 175
- TJ(°C) min.: -55
- ECCN(US): EAR99
包装 (管装)
| Package Name | Tube | Inner Box | Outer Container | ||||
| Quantity(pcs) | LxWxH(mm) | Quantity(pcs) | Weight(kg) | LxWxH(mm) | Quantity(pcs) | Weight (kg) | |
| TO-247-2L | 30 | 540x165x50 | 360 | 3.15 | 565x285x185 | 1800 | 16.31 |
